2x100 Channel UHF Diversity Wireless Lavalier / Lapel Microphone Mu-U602L

MUSYSIC

  • $149.99
  • Save $250


Professional 2x100 Channels UHF Diversity Wireless Lavalier / Lapel Microphone System

***BRAND NEW -- NEVER USED***

Very high quality Professional UHF Diversity Wireless microphone system

MUSYSIC® MU-U602L

One Year Warranty in USA

The powerful music company presenting the MUSYSIC's MU-U602 UHF diversity wireless Lavalier / Lapel microphone system  that delivers extraordinar quality great use for professioanal.. it is best use for professionals that are scanning, true diversity operation,with the feature of  Tone Lock squelch circuit, automatic transmitter setup. Features:

  • Equipped with Backlit LCD display showing RF level, AF level, Channel Frequency and mute status.
  • Size 2x100 Selectable frequencies on each channel, multiple units can be used simultaneously
  • Providing True diversity operation for increased range/reliability, reducing dropouts.
  • It is Built-In Tone Lock Squelch circuit protection from RF interference
  • The Automatic frequency scanning to find and set the best available channel
  • It has Automatic transmitter setup, the channel of the transmitter and receiver can easily synchronize
  • The Dual channel receiver, Both Lavalier microphones can be used at the same time

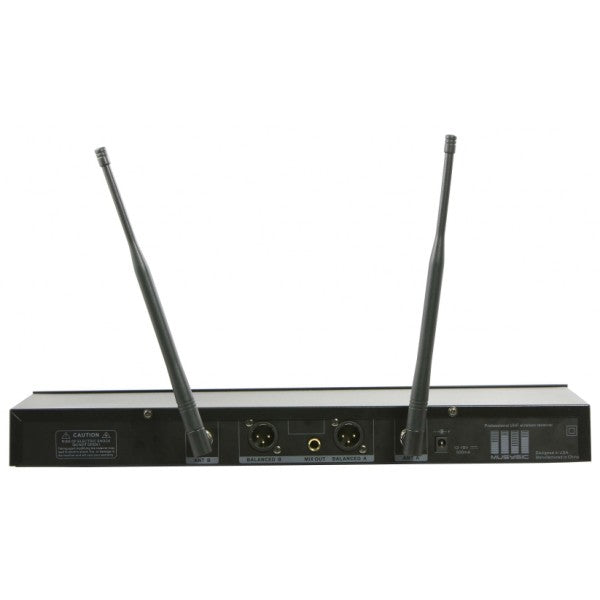

  • It has Two XLR individual outputs and one 1/4" Mixed output
  • The Individual volume control on each channel
  • Rate Frequency: UHF 620MHz - 690MHz ( Comply with FCC new frequency rules )
  • Total Battery Life: 12 Hours ( AA batteries )
  • The Range: Up to 300 feet ( 100 meters )
  • The Rack mountable, Fits 19" rack

Specifications:

    OVERALL SYSTEM:

  • It has Operating Frequency: 620 - 690 MHz/Number of Channels: 200/Frequency Stability: ±30PPm The eModulation Mode: FM
  • The Maximum Deviation Range: ±80KHz
  • Full Operating Range: 100m (300 feet)
  • The Temperature Range : 41f – 113f
  • Total Frequency Response: 40 - 20000 Hz

    RECEIVER:

  • Powerful Receiving System: Diversity
  • Exact Received Sensitivity: -105dBm
  • The Power Supply:  DC 12V
  • Provide Audio output impedance: 600Ohms ±10% Unbalanced
  • Provide Audio output level: 0 - 0.7 V r.m.s
  • It De-Emphasis: 50uS
  • The Dimensions: 19”×8.67”×1.77”
  • The Weight: 1500 g

BODY-PACK TRANSMITTER:

  • Transmitter RF Output: 10 mW
  • The Power Supply: 1.5V AA X 2 Battery
  • Special Microphone: Condenser microphone
  • It has Pre-Emphasis: 50uS
  • Total Dimensions: 3.75” X 2.5” X 1”
  • The Weight: 130g

Package includes:

  • Full 1pc   2 channel VHF receiver
  • Full 2pcs Transmitter Microphones
  • Complete 2pcs Lapel Cable
  • Collection of 2pcs Headset Cable
  • Collection of 1pc  1/4" Audio cable
  • Full 1pc  12V Universal Power Adapter
