4x100 Channel UHF Diversity Wireless Lavalier / Lapel Microphone MU-U604L

The MUSYSIC's MU-U604 UHF diversity wireless Lavalier / Lapel microphone system delivers superior sound quality and professional features. It is designed for a wide range professional application with 4x100 selectable channels, automatic frequency scanning, true diversity operation, Tone Lock squelch circuit, automatic transmitter setup. It's the perfect for professional use at any events.

Features:

• It includes Backlit LCD crystal clear display that is showing RF level/ AF level/ Channel Frequency and have feature of mute status.
• It is 4x100 Selectable frequencies
• It has True diversity operation for increased range/reliability, reducing dropout simultaneously.
• Specialized Built-In Tone Lock Squelch circuit protection from RF interference
• It has Automatic frequency scanning
• The Automatic transmitter setup,
• The channel of the transmitter and receiver can easily synchronize
• THE MULTIPLE 4 channel receiver
• All 4 Lavalier can be used at the same time

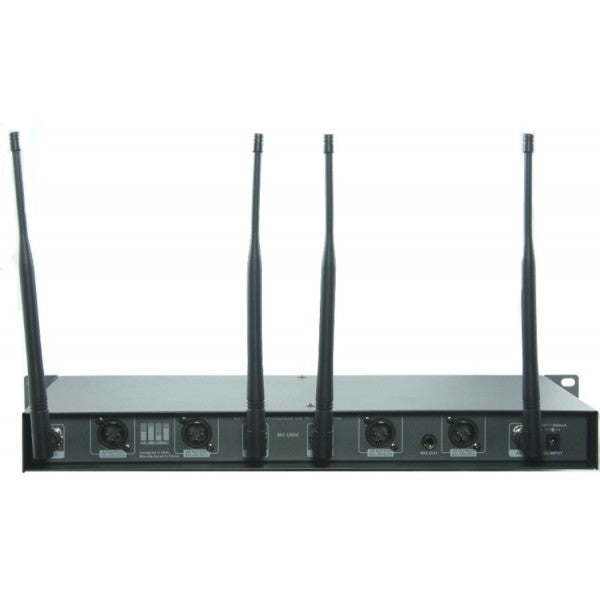

• The Four XLR individual outputs and one 1/4" Mixed output
• The Individual volume control on each channel
• Rate of Frequency: UHF 620MHz - 690MHz ( Comply with FCC new frequency rules )
• Span of Battery Life: 12 Hours ( AA batteries )
• The Range: Up to 300 feet ( 100 meters )
• The Rack mountable, Fits 19" rack

Specifications:

    OVERALL SYSTEM:

• The Operating Frequency: 620 - 690 MHz
• It has Number of Channels: 200
• The Frequency Stability: ±30PPm
• The Modulation Mode: FM
• The Maximum Deviation Range: ±80KHz
• The Operating Range: 100m (300 feet)
• The Temperature Range : 41f – 113f
• The Frequency Response: 40 - 20000 Hz

    RECEIVER:

• Diversity
• Sensitivity: -105dBm
• Power Supply:  DC 12V
• Audio output impedance: 600Ohms ±10% Unbalanced
• Audio output level: 0 - 0.7 V r.m.s
• De-Emphasis: 50uS
• Dimensions: 19”×8.67”×1.77”
• Weight: 1500g

BODY-PACK TRANSMITTER:

• It has RF Output: 10 mW
• It has Power Supply: 1.5V AA X 2 Battery
• The Microphone: Condenser microphone
• The Pre-Emphasis: 50uS
• The best Dimensions: 3.75” X 2.5” X 1”
• The Weight: 130g

Package includes:

• Package of 1pc   4 channel VHF receiver
• Package of 4pcs Transmitter Microphones
• Package of 4pcs Lapel Cable
• Collection of 4pcs Headset Cable
• Collection of 1pc  1/4" Audio cable
• Collection of 1pc  12V Universal Power Adapter
