2 Channel Professional D-Class Power Amplifier
Very high quality Professional Power Amplifier
with Crystal Clear Sound quality & Ultra low Noise Amplifier

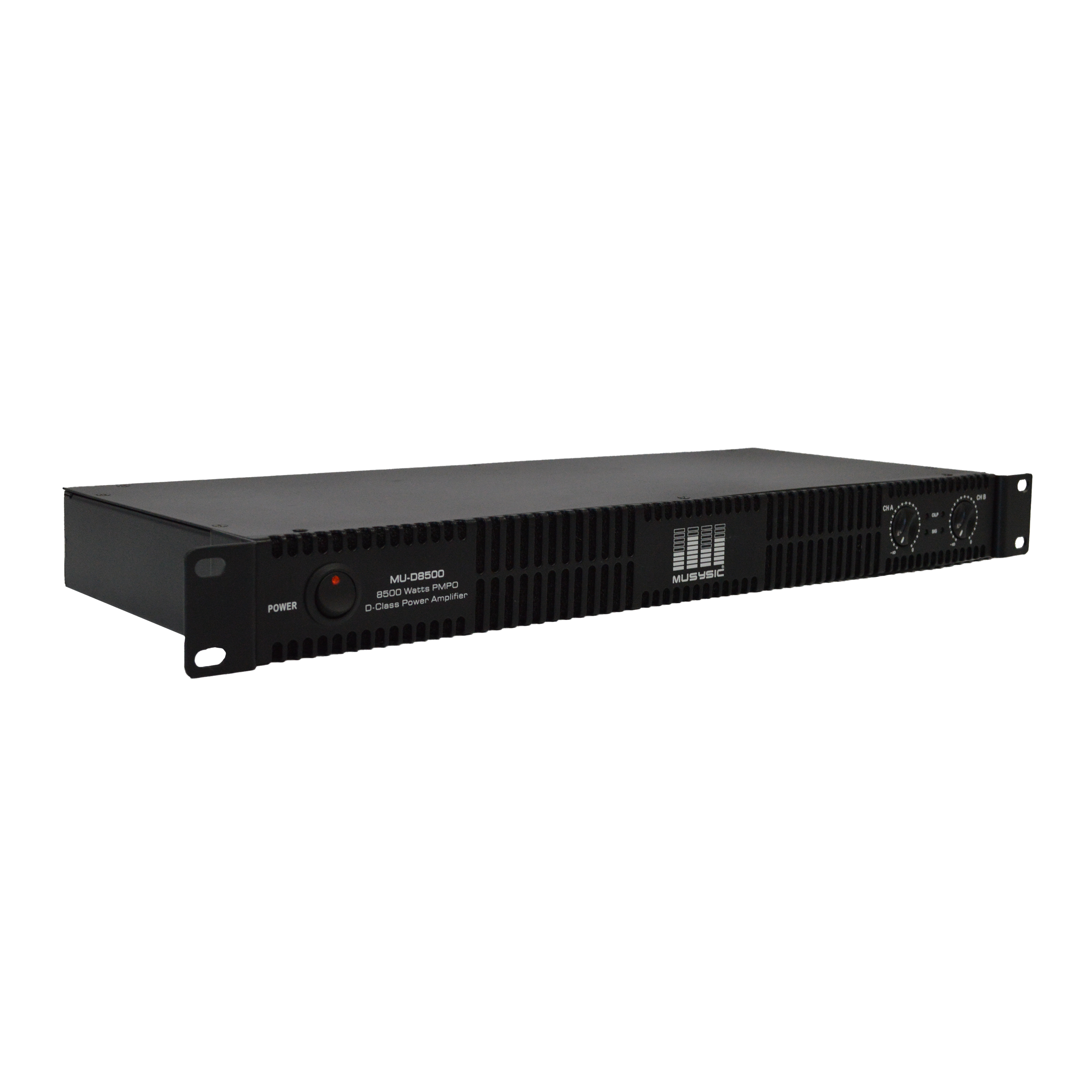

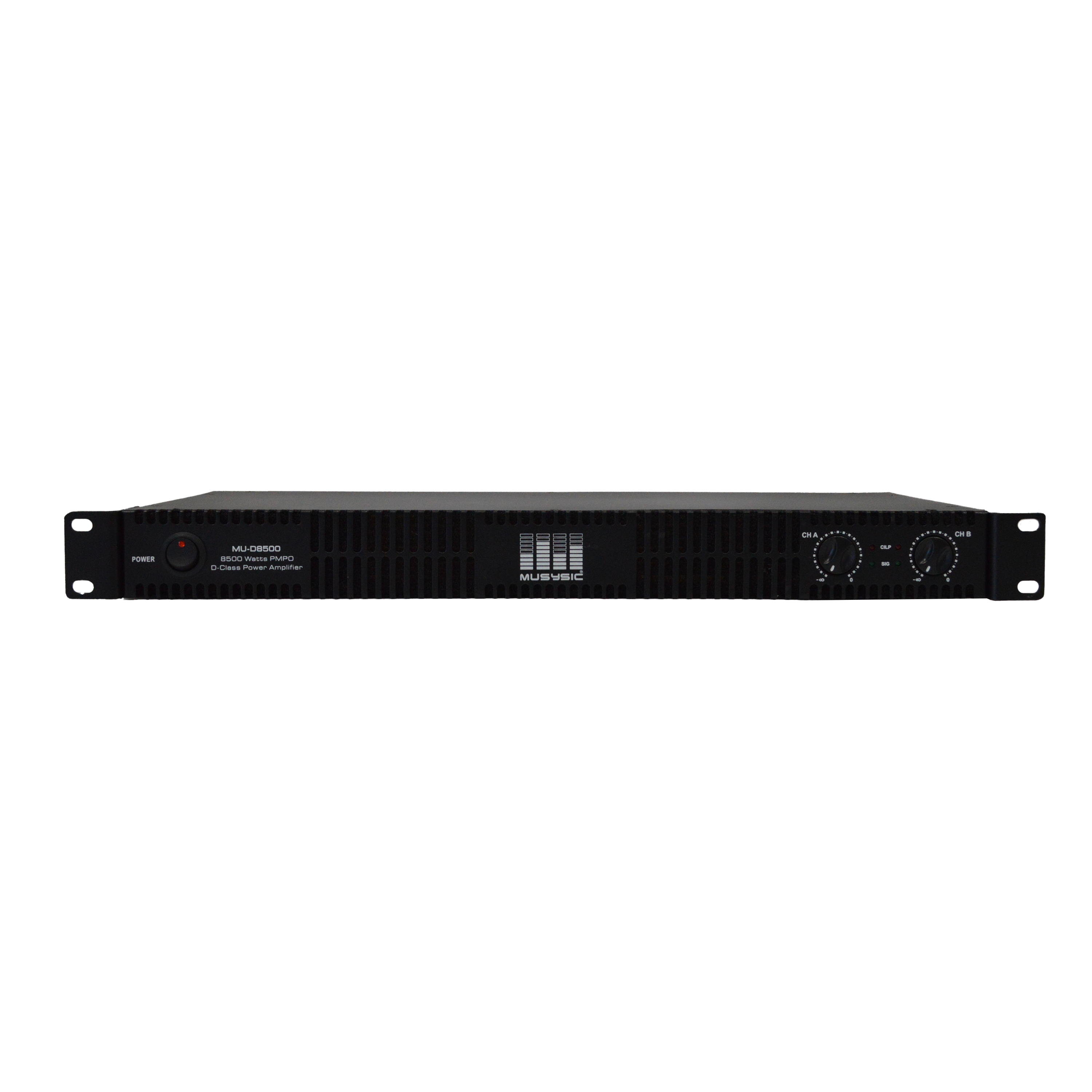

Model # MU-D8500
MUSYSIC's audio engineers have specifically designed the new MU-Series D-Class power amplifiers to be perfect companions to the popular Club Series loudspeakers. It include three step audio filtering, perfect noiseless performance, SMT technology, low-voltage power on function and perfect protection circuit to make this amplifier strong and more reliable on performance. To achieve this, they made sure that the amplifiers are capable of delivering power that matches the power handling capabilities of the Club Series Speakers, and equipped them with SMT technology for ultimate punch and clarity to deliver a signal that will result in optimum system performance.
Each MU-series D-Class amplifier is equipped with this specially designed circuit so that it delivers output tailored to the specific response of the Club Series speakers. All models feature both XLR and 1/4-inch TRS inputs, and Speakon, Banana binding post outputs. High performance with exceptional efficiency, sweepable high and low pass filters for matching output to any loudspeakers, a compact and durable 1U chassis, and variable speed cooling dual fans.
Specifications:
Model |
MU-D8500 |
8ΩStereo Output Power |
2x1200W PEAK, 2x600W Program, 2x300W RMS |
4ΩStereo Output Power |
2x2400W PEAK, 2x1200W Program, 2x600W RMS |
2ΩStereo Output Power |
2x4800W PEAK, 2x2400W Program, 2x1200W RMS |
8ΩBridge Output Power |
2400W PEAK, 1200W Program, 600W RMS |
4ΩBridge Output Power |
4800W PEAK, 2400W Program, 1200W RMS |
Frequency Response |
20Hz-20KHz,+0,-1dB at watts |
THD+N(20Hz-20KHz) |
<0.23%20Hz-20KHz
|
Siew Rate |
>30V/us
|
Damping Factor |
>150
|
Output Circuitry |
Class D |
Signai to Noise Ratio |
≥96dB
|
Cross Talk |
>80dB
|
lnput Sensitivity(8Ω) |
1V |
input lmpedance |
20 k Ω baiance / 10 k Ω unbalanced unbalance balancing 20 k / 20 k |
Cooling |
Dual cooling fans |
Connectors |

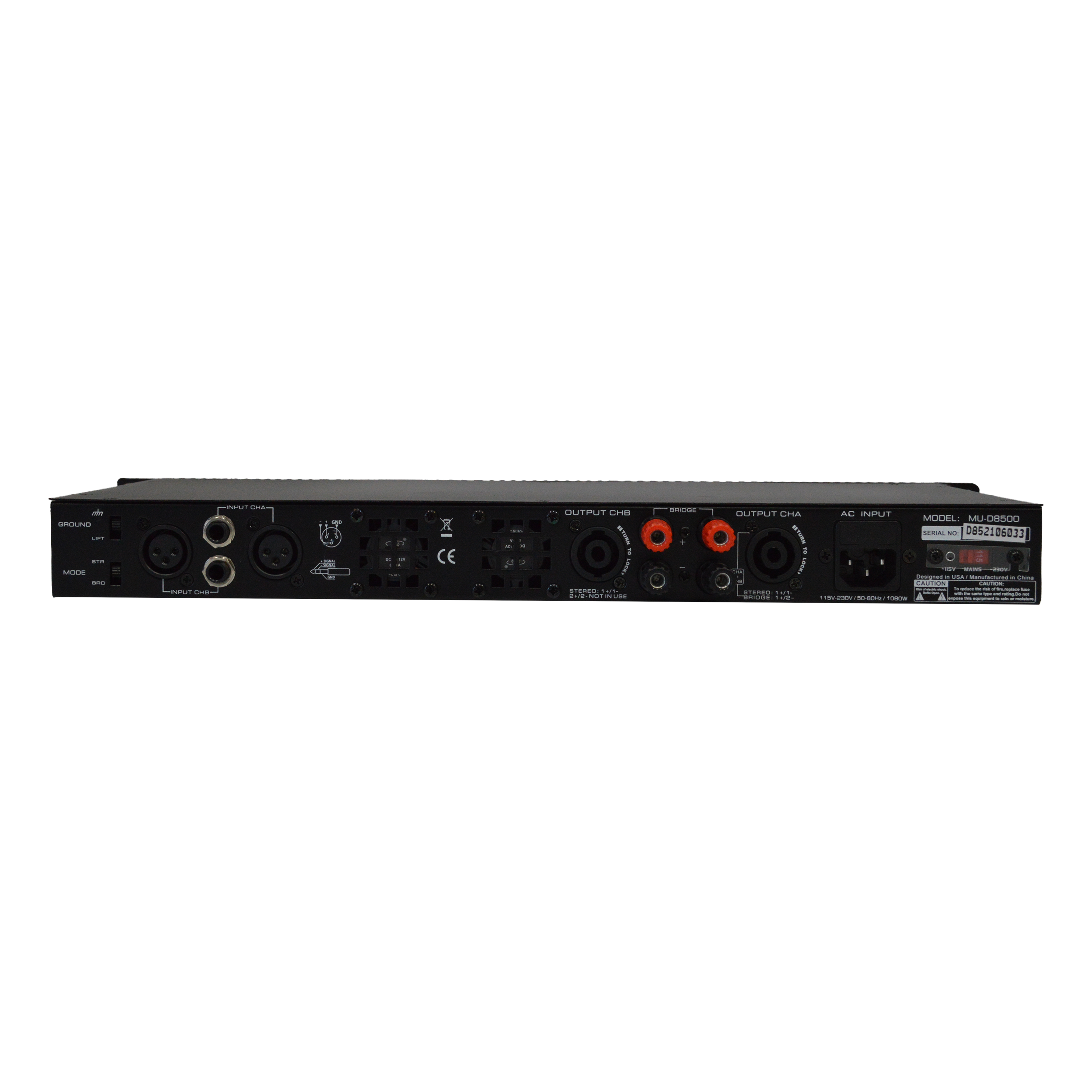

Input: XLR input, 1/4" input: Speakon connector Output: Speakon, locking type socket, Banana plug connection output |
Controls |
Panel: the power switch, channel 1 and channel 2 channel gain control; After the board: working mode, pressure limit. |
lndicators |
Panel: the power switch, channel 1 and channel 2 channel gain control; After the board: working mode, pressure limit. |
Amplifier Protection |
With short circuit, overload, overheat, cut peak pressure limit, dc, soft start, relay zero current switch, super audio and radio frequency protection device. |
Gross Weight/Net Weight |
7.1 lbs/5.2 lbs |
Unit Dimensions |
19.02"x6.3"x1.73" |
Power Requirements |
115v 50/60 hz |
